Rebar Threading Rollers
Rebar Threading Rollers
Threading rollers for forming male threads on the outside of reinforcement bars, installed on the head of the rebar thread rolling machine.
Pattern TypeRound
MaterialHSS / HCHCR / D2
UsageUsed to form a male thread on the outside of rebar
Maximum dimension80 mm (Diameter) × 45 mm (Length)
Pitch1.75 mm to 3 mm
Bore diameterΦ28 mm, Φ30 mm
Country of OriginMade in India
CoatingAvailable as per customer requirement
Application & Capability
Application-focused roller design

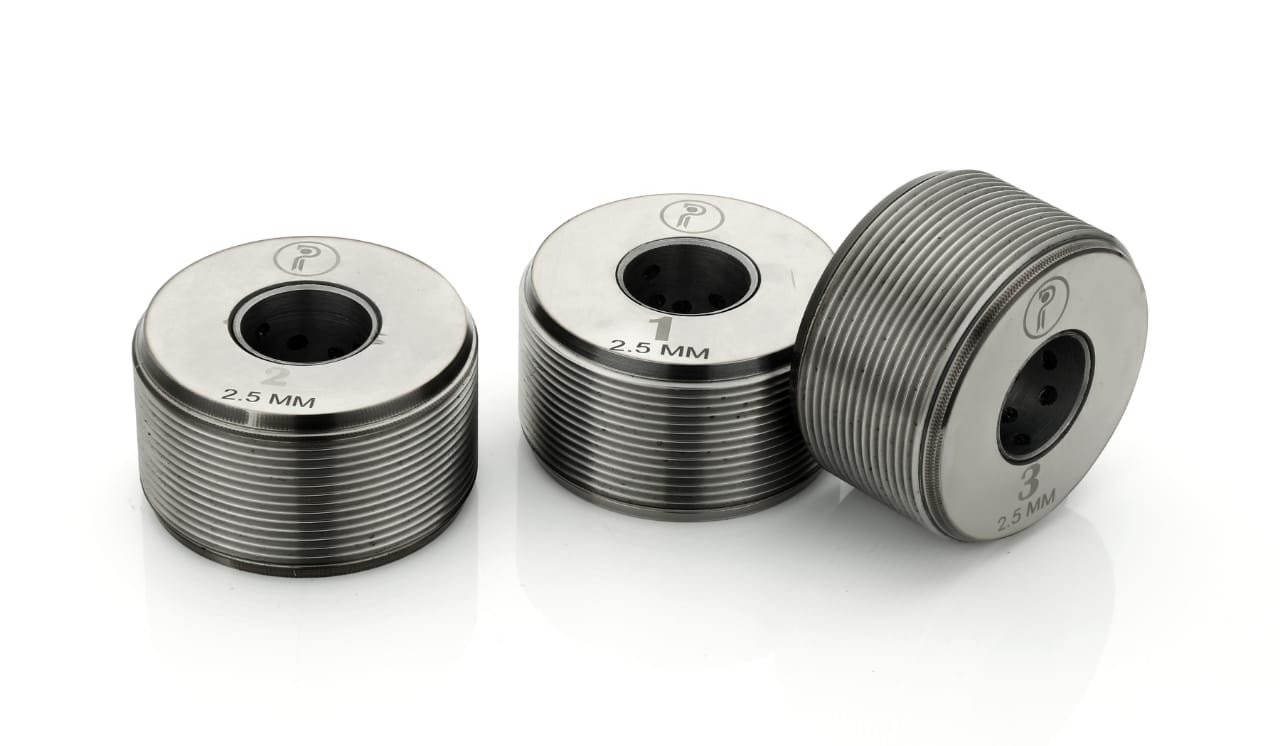

Each set of rollers includes three pieces, numbered 1, 2 and 3 on one side to help judge correct installation sequence. Adjusting the sequence of rollers on the machine allows it to produce either a right-hand or a left-hand thread.
For thread profiles as per ISO as well as special profiles per customer specification.
Regrinding of dies available along with suitable application-based surface treatment.
Coatings are available as per customer requirement.
Sizing Reference
Roller dimensions by rebar diameter.
D12–D14OD 56 mm · ID 30/28 mm · Height 45 mm · Pitch 1.75 mm
D16–D22OD 78/79 mm · ID 30/28 mm · Height 45 mm · Pitch 2 / 2.5 mm
D25–D32OD 71/72 mm · ID 30/28 mm · Height 45 mm · Pitch 2.5 / 3 mm
